Inspex 3
The following list of contents are included as standard with Inspex 3.

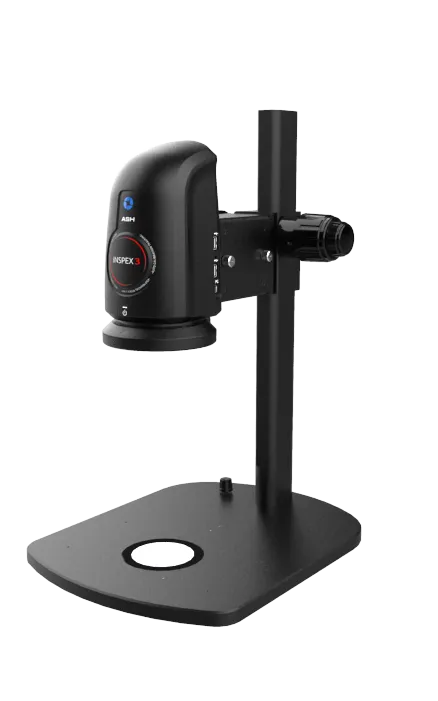

Inspex 3
The powerful, flexible and intuitive HD digital microscope incorporating our new 30x HD Camera module. The Inspex 3 is ideal for industries such as medical device, pharmaceuticals, precision engineering and electronics. This smart digital microscope features unique, patented, high-speed image processing algorithms for exceptional image quality. Inspect your parts with super-fast focus speed and smooth digital zoom. With the Inspex 3 you can experience simpler, easier, more efficient inspection.
Features
- 2D Measurement & Graticules
Point to point measurement and annotation of samples and creation of graticules utilising the AshCal™ calibration.
- Super-Fast Auto-Focus™
Place any part under the camera and it will immediately adjust the focus position allowing you to quickly and seamlessly inspect your part without having to adjust manual focus or change the height of the part.
Features
- SpotFocus™
Quickly focus on the area of interest by simply using the mouse pointer. Improve accuracy and reduce human error with the capabilities of SpotFocus™.
- Image Stacking
Inspex 3 automatically captures several images at different focal depths to create a fully focused, sharp, clear image for easy inspection. Save time by removing the need to adjust the camera height or manual focus.
FEATURES & BENEFITS
INSPEX 3 A CLOSER LOOK
-
WatchInstantly transform your manufacturing process with Inspex 3Ideal platform for your manufacturing inspection needs. Digitally transform your inspection process by upgrading from traditional microscopes, improving ergonomics and introducing networking, documentation, reporting and improved training capabilities. -
WatchTake a tour of the Inspex 3The Inspex 3 is an all-in-one digital microscope system featuring inspection with simple 2D measurement, graticule and image stacking functionality.
-
WatchSuperb Image QualityExperience unrivalled Full HD video imaging never seen before in an Ash system. The Inspex 3 offers an enhanced, vibrant, crystal clear image for even the most demanding inspection applications. -

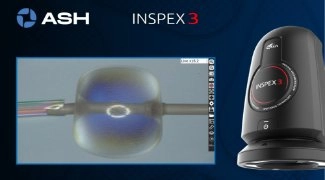

WatchSuper-Fast Auto-Focus™Place any part under the camera and it will immediately adjust the focus position allowing you to quickly and seamlessly inspect your part without having to adjust manual focus or change the height of the part. -

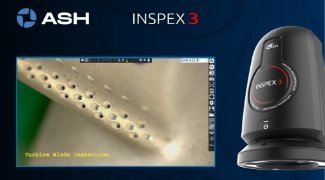

WatchManual Rocker Focus™Save time by quickly adjusting the focus using the rocker icon to inspect the area of interest on a sample part when in manual focus mode. -

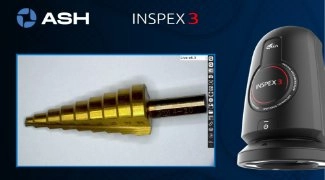

WatchSpotFocus™Quickly focus on the area of interest by simply using the mouse pointer. Improve accuracy and reduce human error with the capabilities of Spot Focus (Global Patent Applied For). -

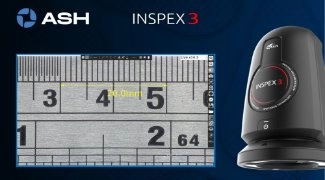

WatchAshCal™Save time with AshCal™. Factory calibration tracking for all lenses. No recalibration when changing magnification levels, giving consistent, accurate measurement with every zoom. -

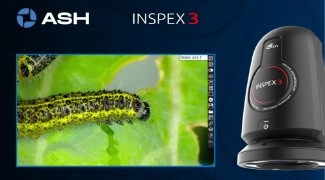

WatchImage StackingInspex 3 automatically captures several images at different focal depths to create a fully focused, sharp, clear image for easy inspection. Save time by removing the need to adjust the camera height or manual focus. -

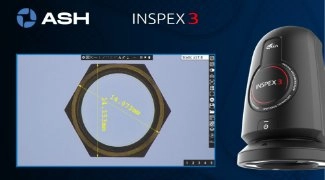

Watch2D Measurement & GraticulesPoint to point measurement and annotation of samples and creation of graticules. -

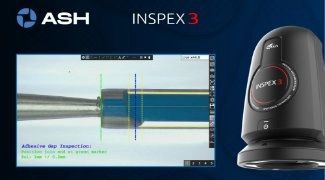

WatchPresets & GraticulesGraticule creation allows samples to be analysed against on-screen digital templates with set tolerance limits. It also enables quick go/no-go defect analysis. This improves efficiency in high-volume sample through-put inspection. Presets can be customised to store and easily recall specific system settings and measurement detail. -

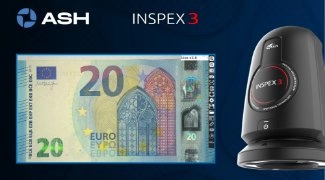

WatchAshTruColour™ – True Colour ReproductionView true colour reproduction of your sample with the Inspex 3. Replicate real and accurate colours as seen with the naked eye for true colour representation. -

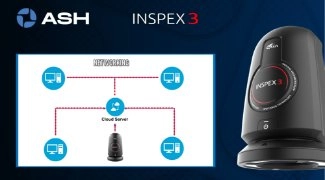

WatchNetworkingNetworking enables direct saving to the server or cloud for increased workflow efficiency. -

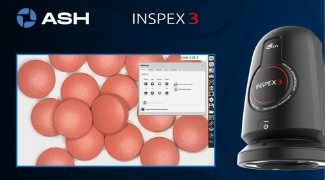

WatchAdvanced Camera SettingsThe new Advanced Camera Settings gives the user more power to enhance the image for a wide range of inspection and measurement capabilities. Tailor sharpness, contrast, saturation and camera shutter speed to suit your particular application. -

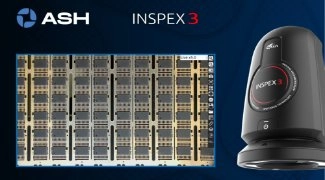

WatchRTLDC™Real-Time Lens Distortion Correction (Global Patent Applied For). Lens distortion is inherent in all microscopes. Image distortion at the outer edges of large samples is automatically corrected by the Inspex 3. -

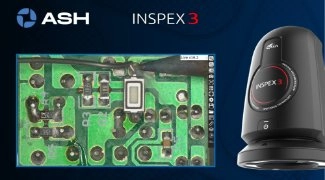

WatchNo Video LatencyThe video from the Inspex 3 has zero delay. It’s 3x times faster than our previous systems. View parts in real time with no video lag, allowing you to comfortably inspect, rework, modify and assemble any part. There is no delay between movement under the camera and what you see on the screen. -

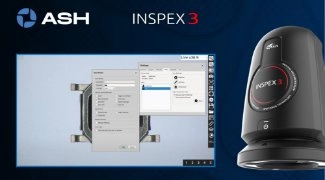

WatchUser PrivilegesUser privilege settings enables operational control and traceability. Assign multiple users with access to different settings and features, improving security and streamlining the inspection process. -
WatchImproved DoFThe Inspex 3 has improved depth of field, making inspection much faster and more efficient without the need for changing focus positions or adjusting camera height.
Technical Information
Camera Specifications**
| Lens Type | 5 | 10 Plan 1x | 25 | 50 | |
|---|---|---|---|---|---|
| Optical | Magnification Range (X) | 2.1 - 65.6 | 4.1 - 130 | 51.7 - 323.4 | 98 - 637 |
| Min Optical FOV (H x V mm) | 240 x 135 | 71 x 71 * | 4.5 x 4.5 * | 2.1 x 2.1 * | |
| Max Optical FOV (H X V mm) | 8.0 x 4.69 | 4.0 x 2.2 | 1.75 x 0.9 | 0.8 x 0.5 | |
| Digital | Magnification Range (X) | 65.6d - 131.6d | 130.5d - 259.9d | 325d - 646.7d | 637d - 1256.1d |
| Min Digital FOV (H x V mm) | 8.0 x 4.69 | 4.0 x 2.2 | 1.75 x 0.9 | 0.8 x 0.5 | |
| Max Digital FOV (H X V mm) | 4.0 x 2.32 | 2.32 x 1.16 | 0.9 x 0.45 | 4.0 x 2.1 | |
| Working Distance (mm) | 195 | 78 | 45 | 34 | |
| Depth of Field (mm) | 80 - 0.5 | 42 - 0.2 | 0.3 - 0.015 | 15um - 4um | |
| Video Latency (milli seconds) | 20 (50Hz)/ 17 (60Hz) | 20 (50Hz)/ 17 (60Hz) | 20 (50Hz)/ 17 (60Hz) | 20 (50Hz)/ 17 (60Hz) |
*circular FOV
**Specifications obtained using a 24” Monitor. Depth of field measured with optimal image settings.
**Specifications obtained using a 24” Monitor. Depth of field measured with optimal image settings.
Technical Specifications
| Magnification Range (with supplied +5 Lens) | 2.1 - 131.6x |
|---|---|
| Camera Resolution | 1920 x 1080 Pixels |
| Monitor Connections | HDMI / DVI |
| Monitor Requirements | HD Ready / Full HD (Recommended) |
| Input / Output | HDMI Output
USB 2.0 (x4 Ports) Mini USB Port General Purpose IO (x3 Ports) DC Power Jack 24V |
| Internal Storage | 16GB |
| Image Capture | Internal Storage
Removable USB Image Storage USB on the Go (PC Connectivity) |
| Power | 24W |
| Dimensions | 216mm x 165mm x 170mm |
| Weight | 1.5kg |
| Operating Temperature | Storage 10°C to 60°C
Operating 5°C to 40°C |
Accessories
Stands
Stages
Lens & Lighting
What’s Included
- Inspex 3
- Quadrant Controllable Ring Light
- Lens +5
- Mouse & Mat
- Keyboard
- Power Supply
- HDMI to HDMI Cable
- Mini USB Cable (for PC connection)
- USB Memory Stick (8gb)
- Grounding Cable
- 2 x Arms Brackets (for stand mounting)
- Arm Receiver
- User Manual
- Cleaning Cloth
