Inspex HD Table

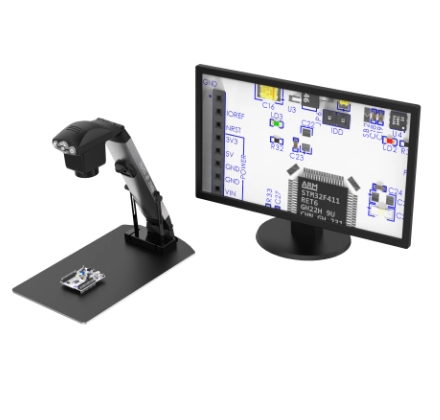

The Inspex HD Table is a portable full HD digital microscope solution for rapid inspection in manufacturing plants. The fully integrated, compact stand allows it to be used in any part of the production environment. Experience full HD image quality with no delay. The ideal solution for those wishing to digitise and simplify their inspection process. This inspection system is ergonomically designed, allowing for less operator fatigue and improved production efficiency. Simple, fast, high-quality inspection, the Inspex HD Table is ideal for repair, rework, assembly and quality control in any manufacturing industry.
Features
- Superb Image Quality
Accurate and detailed inspection with superb HD image resolution, dynamic range of magnification levels and integrated LED illumination.
- Zero Video Latency
Real-time movement under the Inspex HD, resulting in a more efficient inspection process. View parts in real time with no video lag, allowing you to comfortably inspect, rework, modify or assemble your parts.
Features
- On Screen Dimensioning
Integrated, real time, on screen patented measuring grids and cursors provide a simple and effective way to measure without a PC.
- Compact and Portable
Fully portable, compact design with a small footprint. Experience the power of the Inspex HD wherever you need it with its simple configuration. Simply plug in, switch on, and inspect.
Features & Benefits
Take a Closer Look
-
Watch VideoTransform your production process with Inspex HD TableRapid, portable inspection on the production line. The ideal solution for those wishing to digitise and simplify their inspection process. -
Superb Image QualityAccurate and detailed inspection with superb HD image resolution, colour reproduction, contrast and resolution and integrated LED illumination.
-
Video LatencyReal-time movement under Inspex HD, resulting in a more efficient inspection process. View parts in real time with no video lag, allowing you to comfortably inspect, rework, modify or assemble anything.
-
On Screen DimensioningIntegrated, real time, on screen patented measuring grids and cursors provide a simple and effective way to measure without a PC.
-
Image CaptureEasy documentation and traceability for accurate quality control records. Store images directly to USB. Simply plug and go!
-
Working DistanceSLWD (Super Long Working Distance) objective lens for extra-large part viewing.
-
Wide Dynamic RangeWide Dynamic Range uses overlapping multiple exposures depending on the saturation level of each pixel.
Technical Information
Magnification
| Lens (Dioptre) (mm) | 2 | 3 | 4 | 5 | 10 |
|---|---|---|---|---|---|
| Max Height (mm) | 500 | 333 | 250 | 200 | 100 |
| Min Height (mm) | 405 | 280 | 205 | 170 | 85 |
| Minimum Magnification* | 1.1 | 1.3 | 2 | 2.5 | 4 |
| Maximum Magnification* Optical/Digital | 29/57 | 36/71 | 50/98 | 62/122 | 121/237 |
| Field of view at minimum mag. (mm) | X: 595
Y: 334 |
X: 400
Y: 225 |
X: 280
Y: 164 |
X: 231
Y: 136 |
X: 60
Y: 50 |
| Field of view at maximum mag. (mm) | X: 20/10
Y: 11/5.5 |
X: 14/7
Y: 8/4 |
X: 10/5
Y: 6/3 |
X: 8/4
Y: 5/2 |
X: 5/2
Y: 3/1 |
| Maximum depth of field | 176 | 120 | 106 | 78 | 57 |
| Minimum depth of field | 5 | 4 | 1 | 0.50 | 0.20 |
Technical Specifications
| Zoom Range (with supplied Lens) | 4D lens – 2x - 98x |
|---|---|
| Camera Resolution | HD 1080p, 1920 x 1080 at 50/60 Hz |
| Monitor Connections | HDMI / DVI |
| Monitor Requirements | HD Ready / Full HD (Recommended) |
| Power | 8 Watts |
| Dimensions | Table 240mm x 410mm
Folded Height 110mm Raised Height 420mm |
| Weight | 2.5kg |
| Operating Temperature | Storage -10°C to +60°C
Operating +5°C to +40°C |
| Image Capture | USB 2.0 highspeed |
Accessories
Stages
Lens & Lighting
Additional Accessories
What’s Included
- Inspex HD 1080p
- +4 Lens
- Power supply
- HDMI to HDMI cable
- Operation Manual
- Grounding Cable
- USB Memory Stick
Brochure
All you need to know about the Inspex HD Table
A comprehensive Inspex HD Table product brochure, in pdf format, for downloading, sharing and printing.
