The digital microscope with full HD image quality and no delay. This is the ideal solution for those wishing to digitise and simplify their inspection process. Ergonomically designed, allowing for less operator fatigue and improved production efficiency. Simple, fast, high-quality inspection. Ideal for repair, rework, assembly and quality control in any manufacturing industry.
Features
- Superb Image Quality
Accurate and detailed inspection with superb HD image resolution, dynamic range of magnification levels and integrated LED illumination.
- Zero Video Latency
Real-time movement under the Inspex HD, resulting in a more efficient inspection process. View parts in real time with no video lag, allowing you to comfortably inspect, rework, modify or assemble anything.
Features
- Multiple Configurations
The Inspex HD is available in several different configurations to meet your needs. Short, long or flexible, the ultra-versatile Vesa can be tailored to meet your needs.
- On Screen Dimensioning
Integrated, real time, on screen patented measuring grids and cursors provide a simple and effective way to measure without a PC.
FEATURES & BENEFITS
INSPEX HD A CLOSER LOOK
-
WatchTransform your production process with Inspex HD VesaExperience full HD picture quality with no delay. A versatile solution for those wishing to digitise and simplify their inspection process. -
WatchTake a tour of the Inspex HD RangeThe Inspex HD is perfect for manufacturers moving from optical to digital microscopes, reducing operator fatigue and improving efficiency.
-
Superb Image QualityAccurate and detailed inspection with superb HD image resolution, colour reproduction, contrast and resolution and integrated LED illumination.
-
Video LatencyReal-time movement under Inspex HD, resulting in a more efficient inspection process. View parts in real time with no video lag, allowing you to comfortably inspect, rework, modify or assemble anything.
-
On Screen DimensioningIntegrated, real time, on screen patented measuring grids and cursors provide a simple and effective way to measure without a PC.
-
Image CaptureEasy documentation and traceability for accurate quality control records. Store images directly to USB. Simply plug and go!
-
Working DistanceSLWD (Super Long Working Distance) objective lens for extra-large part viewing.
-
Wide Dynamic RangeView dark and bright areas simultaneously without saturation. Wide Dynamic Range uses overlapping multiple exposures depending on the saturation level of each pixel.
Technical Information
Magnification
| Lens (Dioptre) (mm) | 2 | 3 | 4 | 5 | 10 |
|---|---|---|---|---|---|
| Max Height (mm) | 500 | 333 | 250 | 200 | 100 |
| Min Height (mm) | 405 | 280 | 205 | 170 | 85 |
| Minimum Magnification* | 1.1 | 1.3 | 2 | 2.5 | 4 |
| Maximum Magnification* Optical/Digital | 29/57 | 36/71 | 50/98 | 62/122 | 121/237 |
| Field of view at minimum mag. (mm) | X: 595
Y: 334 |
X: 400
Y: 225 |
X: 280
Y: 164 |
X: 231
Y: 136 |
X: 60
Y: 50 |
| Field of view at maximum mag. (mm) | X: 20/10
Y: 11/5.5 |
X: 14/7
Y: 8/4 |
X: 10/5
Y: 6/3 |
X: 8/4
Y: 5/2 |
X: 5/2
Y: 3/1 |
| Maximum depth of field | 176 | 120 | 106 | 78 | 57 |
| Minimum depth of field | 5 | 4 | 1 | 0.50 | 0.20 |
Technical Specifications
| Zoom Range (with supplied Lens) | 5D Lens – 2.5x - 122x |
|---|---|
| Camera Resolution | HD 1080p, 1920 x 1080 at 50/60 Hz |
| Monitor Connections | HDMI / DVI |
| Monitor Requirements | HD Ready / Full HD (Recommended) |
| Power | 8 Watts |
| Dimensions | 370mm x 120mm x 140mm |
| Weight | 1.2kg |
| Operating Temperature | Storage -10°C to +60°C
Operating +5°C to +40°C |
| Image Capture | USB 2.0 highspeed |
Accessories
Stages
Lens & Lighting
Additional Accessories
What’s Included

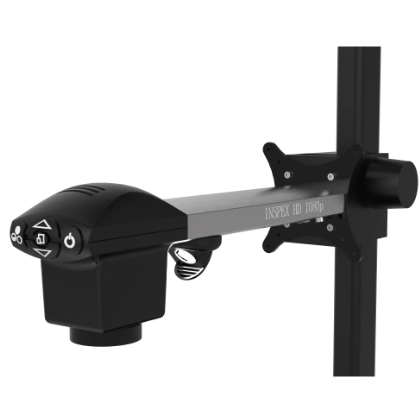

- Inspex HD Vesa
- +5 Lens
- Power supply
- HDMI to HDMI cable
- Operation Manual
- Grounding Cable
- USB Memory Stick
